Coexpression of Two Genes

TaKaRa Bio

1) Bicistronic IRES Vectors

IRES-containing bicistronic vectors allow the simultaneous expression of two proteins separately but from the same RNA transcript

• Translate your gene of interest and an antibiotic resistance marker or fluorescent protein from a single mRNA
• Quickly identify cells expressing your protein of interest at high levels
• Bicistronic expression allows faster, better stable clone selection

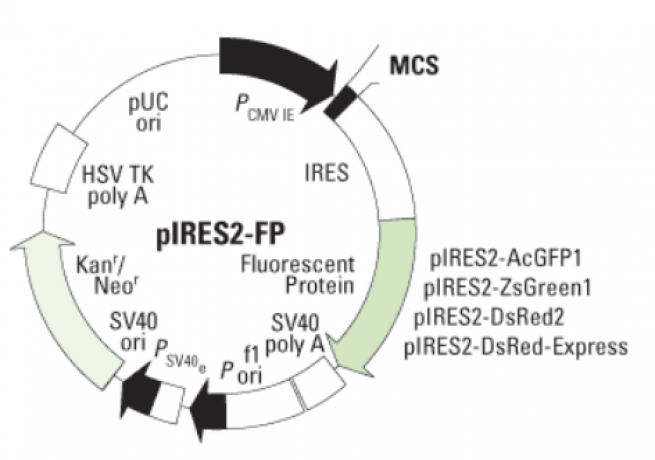

Map of the fluorescent pIRES2 bicistronic expression vectors

Applications

• Rapidly select stable clones that show high-level expression of your target protein
• Identify transfected cells by antibiotic selection, fluorescence microscopy, or flow cytometry



2) Bidirectional Promoter Vectors

The pBI bidirectional vectors are designed to constitutively express a protein of interest and a reporter protein (or two proteins of interest). Expression is driven by constitutively active bidirectional human cytomegalovirus promoters (PminCMV). The gene(s) of interest must contain an initiation codon and a stop codon.



• To generate stable clones using these bidirectional vectors it is recommend cotransfection with a linearized selection marker or a vector containing an antibiotic selection marker
• Applications - Constitutive expression of a protein of interest and a reporter protein
• You can choose from green or red fluorescent reporters



• pBI-CMV1
  • Allows the constitutive expression of two proteins of interest
• pBI-CMV2
  • Allows you to express a protein of interest and AcGFP1
  • Monomeric green fluorescent protein derived from Aequorea coerulescens
• pBI-CMV3 allows you to express a protein of interest
  • ZsGreen1, an extremely bright green fluorescent protein
  • Derived from Zoanthus sp. reef coral
• pBI-CMV4
  • Allows you to express a protein of interest
  • DsRed2, a red fluorescent protein derived from Discosoma sp. reef coral
• pBI-CMV5
  • Allows you to express a protein of interest and firefly luciferase
  • It is sold as part of the Bidirectional Secreted Luciferase System, together with its reporter assay



Documents and resources

For more information visit producer's website.
