CyBio FeliX
Flexible liquid handling system for fully automated single- to multichannel tasks
The CyBio FeliX is a flexible and compact liquid handling platform uniquely designed for your requirements. The CyBio FeliX is suitable for the daily pipetting routines and is adaptable for your applications at any time.
Main features:
- Suitable for the daily pipetting routines
- Compact design (650 x 650 x 450 mm) to minimize bench space
- Various types of pipetting heads with automatic tip and adapter loading
- 1-384 channels in a volume range of 1 –1000 µl
- Unique deck design with 12 positions on two levels
- Pipetting head moves in horizontal (x) and vertical (z) direction
- Third dimension (y) is achieved by rearranging deck system
CyBio FeliX Overview
Applications
- Plate replication and reformatting
- Serial dilution in rows and columns
- Tube to plate transfer
- DNA extraction and purification
- Next Generation Sequencing (NGS) preparation
- PCR / qPCR reactions setup
- ELISA
- HTRF assay
- ADME and toxicity assays
- Hit picking
- Normalization
- High-throughput plasmid isolation
- High-throughput bacterial transformation

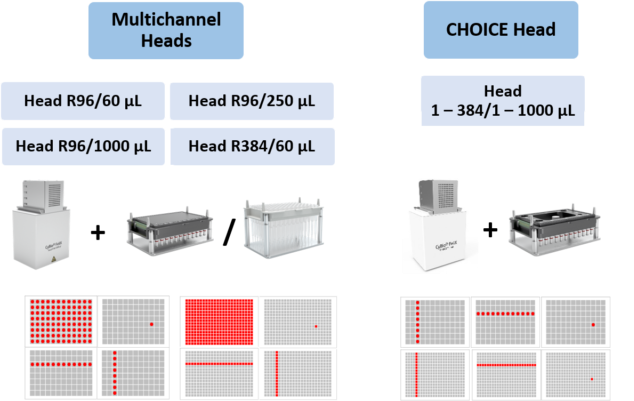

Pipetting Heads
- Selective tip loading in single, row or column format using liquid handling adapters with cones
- 1-, 8-, 12-, 16- and 24-channel liquid handling adapters available
- Head R allows precise parallel pipetting in 96 or 384 channels
- Automatic adapter change, identification and tip ejection within a method
- Automatic tip pickup from tip box and disposal to waste performed by the adapter
Accessories - Complete solutions for your needs
- Tip wash station, Reservoirs (optional with automatic filling), Gripper, Magnetic adapter
- Microplate shaking, heating, cooling; Microplate adapter, Tube Rack
- 384 / 1536 microplate adapter for actuator mechanism
- Waste Box, Soft Touch adapter, 40 mm Height adapter,
- ... and more
Different appearances
- Standard basic unit with enclosure (optionally with UV cover)
- Dark FeliX - opaque enclosure for light sensitive reagents
- Clean bench unit for clean bench or biosafety cabinet, optionally with light curtain
- Optionally connected with CyBio Carry or CyBio Door Lifter for full automation
