UVP GelStudio Series

Analytik Jena

The UVP GelStudio documentation systems are used for high sensitivity imaging of DNA and protein gels and fluorescent dyes (Coomassie Blue, GelGreen and SYBR). Imagers are available in two different sizes (standard and PLUS version) and available as a touch screen controlled or as an external computer operated system.



Models:

UVP GelStudio (illuminated area: 16.8 x 21 cm)

UVP GelStudio touch

UVP GelStudio PLUS (illuminated area: 25 x 26 cm)

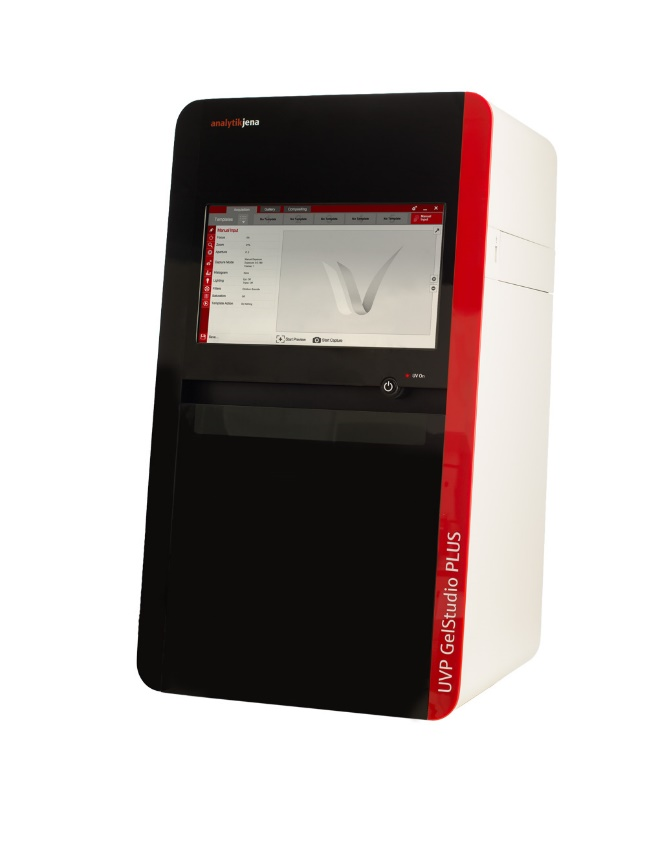

UVP GelStudio PLUS touch



Main features

• High sensitivity camera and optics (12.0 megapixel camera, automated f/1.2 zoom lens)
• Contrast-rich images of fluorescent and colored samples
• Ideal for multitasking and viewing several images
• Wide maximum illuminated imaging area for imaging multiple gels of various sizes (up to 25 x 26 cm)
• Base lighting: Thin-Line Transilluminator, (302 nm) with High/Low intensity control
• Overhead white, red, green and blue LEDs included
• Unique "Slide2Hide" door, features smooth operation and limits bench top interferences
• Integrated UV Protection Shield, maximizes protection from UV radiation
• Five-position automated, filter tray for easy access (Ethidium bromide filter included)
• Upgradeable to support UVP eLITE Light Source module, for excitation from 400 to 800 nm wavelength
• Small footprint which maximizes laboratory bench space
• VisionWorks Software, with comprehensive features, optimizes image acquisition and analysis
• Fully networkable system that can connect over wireless network for simple transfer of files and data.



Applications:

• Multiplex fluorescence
• RGB
• DNA gels
• Protein gels
• Fluorescent dyes
• Colorimetric imaging
• Colony counting



Documents and resources

For more information visite the producer's website.

Product brochure UVP GelStudio Imaging System
